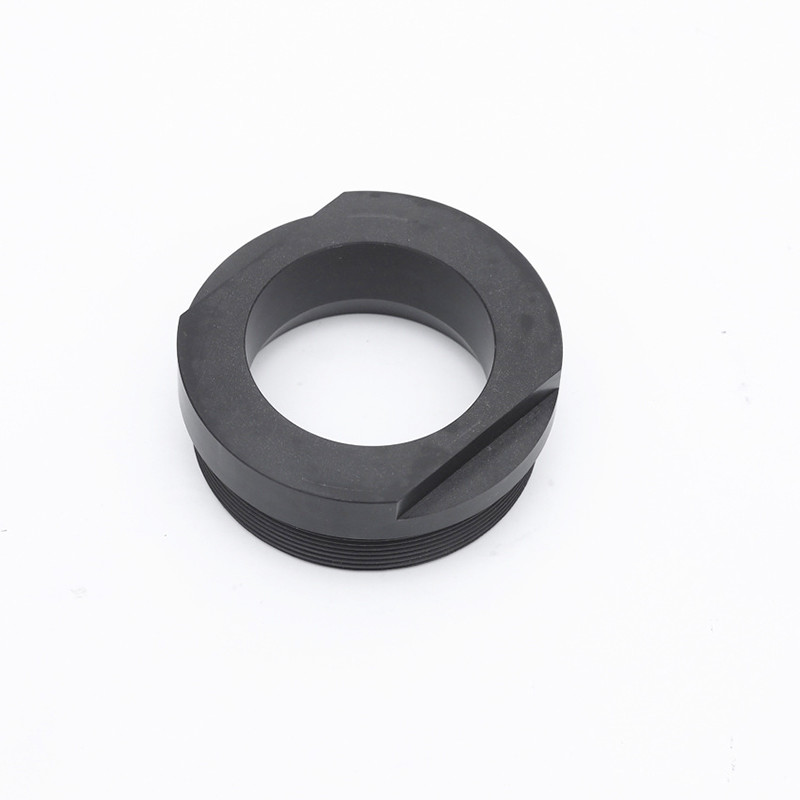

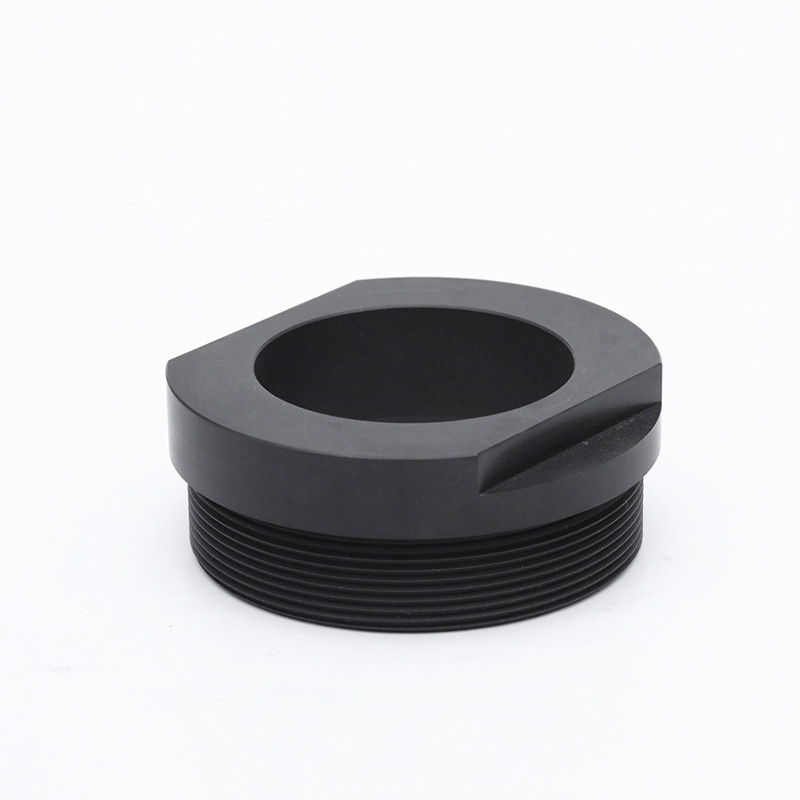

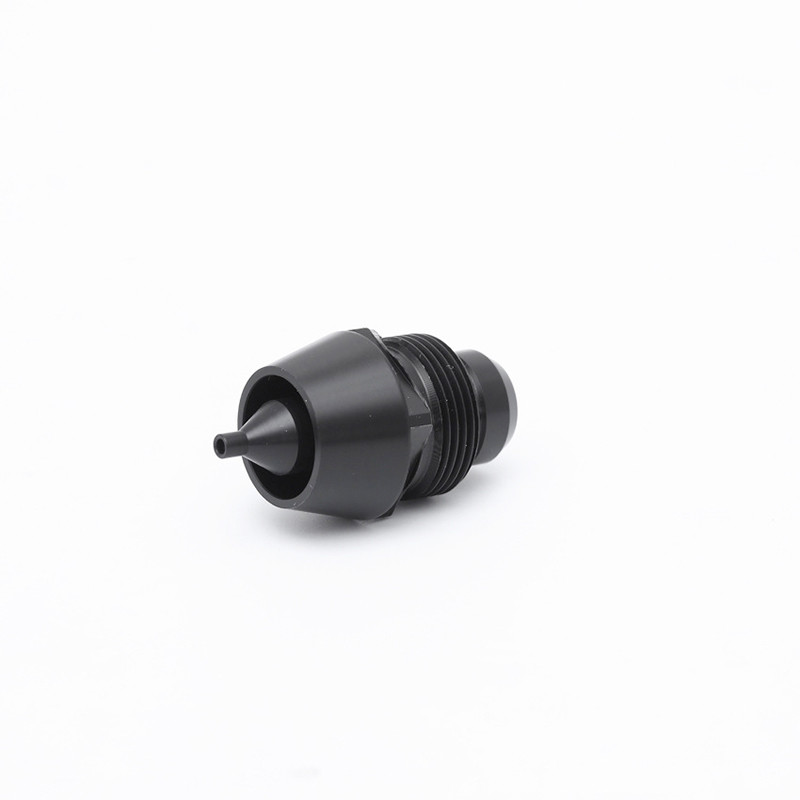

Precision Plastic CNC Turning-Milling
Product Details
Product Name: Precision Plastic CNC Turning-Milling
Machining Type: CNC Turning and Milling
Machining Accuracy: As machined
Lathe Milling Type: CNC lathe +CNC machining
Material: Plastic
Tolerance: ±0.05mm, can be customized according to customer requirements, the most precise tolerance up to ±0.003mm
Proofing Period: 3-7 days
Production Cycle: According to the production quantity and product structure to determine
Surface Treatment: As machined
Origin: Dongguan, China
More Details About CNC Machining
| Item |
OEM Service Tight Tolerance Custom Design Precision CNC Machining Parts |
| Size |
Customized, according to drawing |
| Technological Design |
Process analysis and review of product drawings; Draw up a processing plan; Compile process specification and design and manufacture of process equipment |
| Material |
Carbon steel, Stainless steel, Aluminum, Aluminum alloy, Copper alloy, Galvanized steel sheet, Titanium alloy, Special materials, Engineering Plastics Or Customized |
| Processing |
Milling, Turning, Drilling, Planing, Fitter, Boring, Grinding, CNC machining, Broaching, Grinding and Honing |
| Surface |
Polishing, Sandblasting, Zinc plating, Tin plating, Nickel plating, Gold plating, Silver plating, Copper plating, Alloy plating and Spraying (Painting and powder spraying), Anodizing and electrophoresis, etc. |
| Testing Equipment |
CMM, Roundness Meter, Altimeters, Hardness Tester, Marble Platform, etc. |
| Min Order |
1 piece |
| Quotation Against |
2D drawings (PDF, JPG, DWG), 3D drawings (STP, IGS) or sample |
CNC Turning Service High Quality Parts
Our CNC turning services enable high speed and high quality turning of both plastics and metals. If you need online CNC turning we are one of the most capable and affordable sources and we can get the job done right.
Our turning capacity is available for one-off prototypes through to low-volume production of your product and parts.Known throughout the industry for the unsurpassed quality and accuracy of our precision CNC turning, we can ensure the performance of each component we produce. We have many years’ experience in CNC turning, and our reputation for quality continues to grow.
We have provided precision CNC turning for applications such as engine components, turbine components, construction equipment, forgings, valves, sockets, bushings, and more. Most of our work is performed within 1 to 2 weeks depending on complexity, with rush services also available. For more information, check the CNC turning services or contact us directly.
Advantages of the CNC Turning Center
1. Continuous Production
One advantage of the turning center is that the chuck and spindle are hollow down their central axis of rotation. This allows new feedstock to be loaded into the chuck from the spindle side using automatic bar feeders such as we have at Zhaoyi.
With a bar feeding system, production is continuous and therefore high volumes can be produced very quickly.
2. The Turning Center Can be Used to do Milling
Complex round or cylindrical parts often require other features that only milling can provide, like square-sectioned cutouts or angular faces. To do this, the turning center can hold the workpiece in a fixed position while a live tool performs the additional milling function.
3. Turning Centers Don' t Need Holding Fixtures
Since the workpiece is held by the chuck mounted on the spindle, no specialty holding fixtures are needed. This reduces set-up times and lowers cost and complexity.
4. Tools are Easy to Index
Indexing refers to telling the computer where the tool is relative to the workpiece. Since all workpieces are mounted on the spindle, their location is known and so it is easy to index a tool relative to this point. This makes set-up fast and accurate.
5. Turning Produces Excellent Surface Finishes
When turning, the cutting tool is in constant contact with the work surface rather than "chipping" away at it as would happen with milling. This produces an excellent surface that often requires no secondary processing.
Mass Production of CNC Machining Parts
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, the sample fee depends on the product geometry, and the fee will be returned to your bulk order.
Q: What's your QC system?
A: We can provide many kinds of testing certificates, material and dimensional inspection, etc.
Q: Why there is tolling cost?
A: It's mold cost, indispensabel production process. Only need to pay for first order, and we'll bear maintenance of mold damage.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
