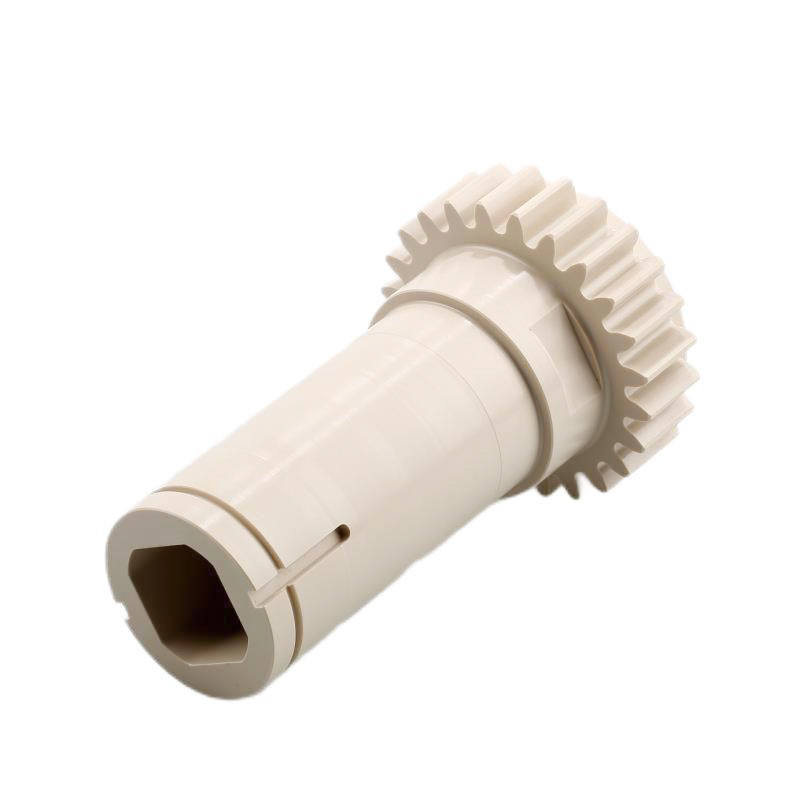

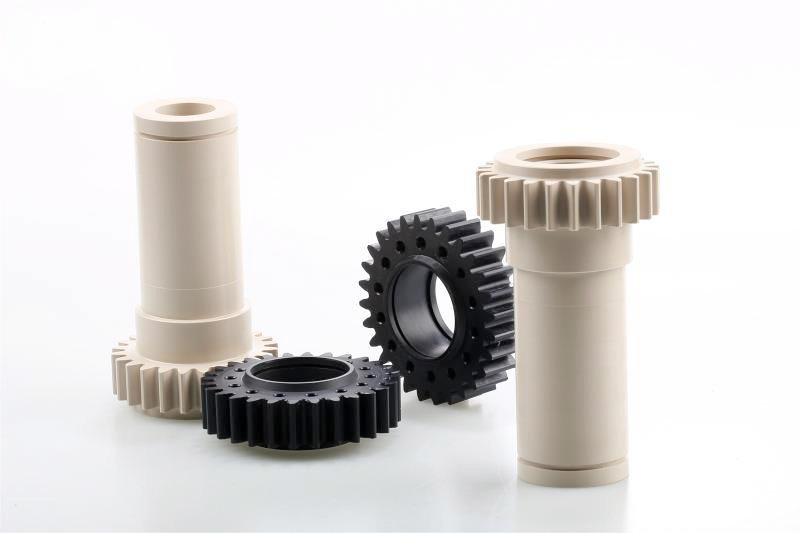

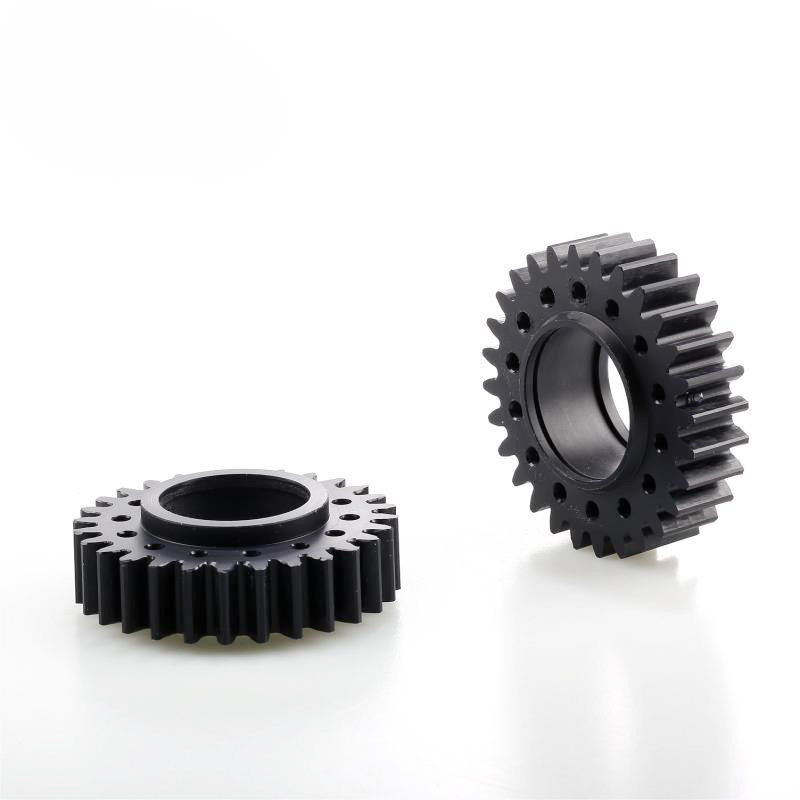

PEEK CNC Turning-Milling Parts
Product Details
Product Name: PEEK CNC Turning-Milling Parts
Machining Type: CNC Turning and Milling
Machining Accuracy: High
Lathe Milling Type: CNC lathe +CNC machining
Material: PEEK
Tolerance: ±0.05mm, can be customized according to customer requirements, the most precise tolerance up to ±0.003mm
Proofing Period: 3-7 days
Production Cycle: According to the production quantity and product structure to determine
Surface Treatment: As machined
Origin: Dongguan, China
Custom CNC Machining Part Service
| Name |
CNC Machining Parts |
| Available Materials |
Steel, Aluminum, Alloy, Brass, Copper, Bronze, Nylon, Acrylic, etc |
| Process |
CNC milling and turning, drilling, grinding, bending, stamping, tapping |
| Tolerance |
0.005mm~0.1mm |
| Surface Roughness |
Ra1.6-3.2 |
| DRW Format |
PDF/DWG/IGS/STP/X_T etc |
| Equipment |
CNC machining center, CNC turning, General milling machines |
| MOQ |
1pc |
| Machining Scope |
1). Equipment/Machinery
2). Medical & Technological parts
3). The Automotive/motorcycle parts
4). The telecommunication parts
5). The power tool parts
6). Bicycle parts
7). The agricultural parts
8). Hardware |
| QC System |
100% inspection before shipment |
| Payment Term |
T/T, PayPal |
| Surface Treatment |
Anodizing, zinc/chrome/nickel/silver/gold Plating, Polish, Sandblast, Brushing, Oxide, Silk Print, Laser engraving, Heat treatment, etc |
| Shipment Terms |
1) 0-100kg: air freight priority |
| 2) >100kg: sea freight priority |
| 3) As per customized specifications |
| Packing |
1. Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Send the sample by express, 3~5 days door to door service. |
About CNC Turning Centers
Headstock
Gear and speed changing mechanism together with the main spindle are housed here. An electric motor drives the spindle though back in the early days, lathes were driven by the use of a flat belt pulley. More often than not the end of the main spindle has a Morse taper.
Bed
This is a base that is connected to the headstock. The connection ensures that the spindle access moves in parallel with the tailstock and carriage. The tailstock and carriage are restrained in a set rack by the bedways so as to facilitate movement.
Feedscrews and Leadscrews
Feedscrews are long driveshafts connecting to a series of gears that are on the apron so as to allow the carriage to drive along the Z-axis. The function of the leadscrew is the same only that it operates orthogonally to the feedscrew hence causing movement of the carriage along the X-axis.
Carriage
It is composed of the top/saddle and apron/the side. It moves the cutting tool perpendicularly for facing operations and longitudinally for turning operations.
Tailstock
This is the center mount that is positioned on the opposite side of the headstock. The spindle that is found in the tailstock does not rotate. From the function of a leadscrew, it moves longitudinally.
Common Workpiece Defects and Causes in CNC Turning
Bend:
1.The weight of the material and its own bending. It should be treated by straightening and hot province.
2.The workpiece clamping is not good, tailstock and the center hole is tight.
3.The improper selection of the geometric parameters and the cutting parameters of the CNC Turning, result to cutting force is too large. You can reduce the cutting depth and increase feed number.
4.Hot deformation is produced in cutting. Cooling lubricants should be used.
5.The distance between the tip and the support block is too large. It should not exceed 2mm.
Surface of CNC Turned Component is rough:
1.The vibration of the turning.
2.Improper selection of material with the support block of the tool, bad contact with the workpiece and friction.
3.The improper selection of the geometric parameters of the tool.
Surface Treament for CNC Turning Parts
FAQ
Q: If I need the parts urgent, can you help?
A: Yes, we are here to help. Production time is flexible. If you need the parts urgent, please tell us the delivery time you need. We will do our best to adjust the production schedule priority.
Q: What surface treatment services do you have?
A: Customer's Demand, Anodized, Plating, PVD, Nickel Plating, Sandblasting, Powder Cating, Polishing, Multi-color anodized, Painting, etc.
Q: Is the sample available? free?
A: Samples are available and some are free.
Q: Why there is tolling cost?
A: It's mold cost, indispensabel production process. Only need to pay for first order, and we'll bear maintenance of mold damage.
Q: Can you advise on suitable materials for us?
A: Yes, we are very knowledgeable and can recommend the best grade materials for your application.
