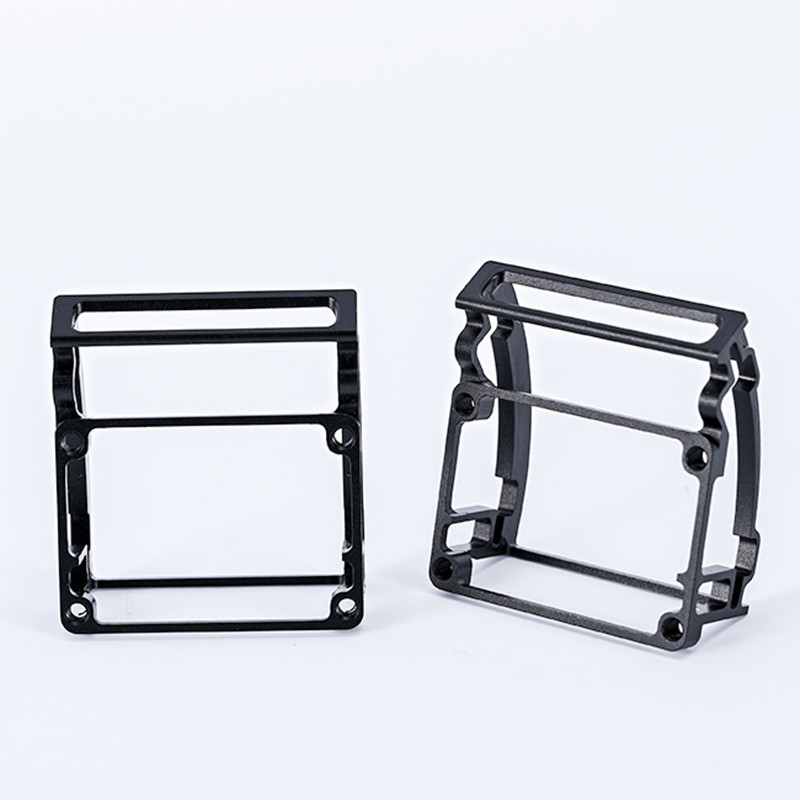

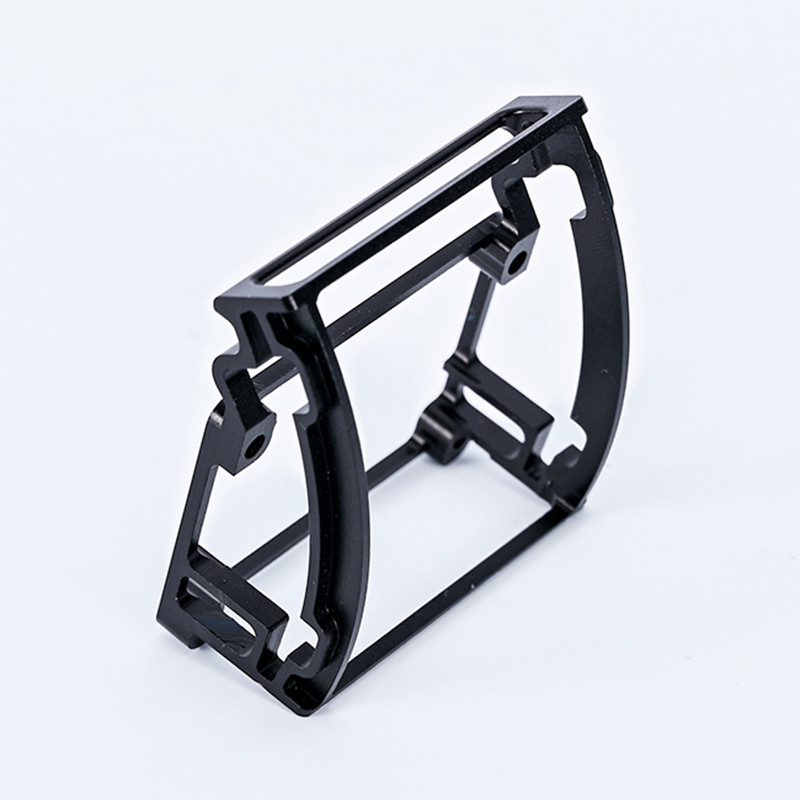

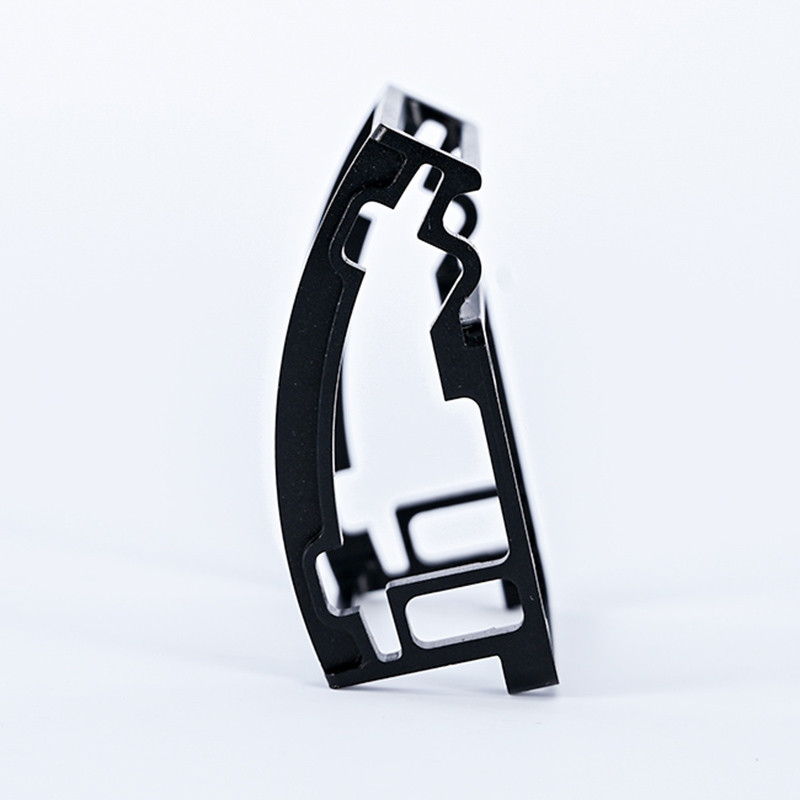

Custom Fabrication 5-axis CNC Machining Service
Product Details
Product Name: Custom Fabrication 5-axis CNC Machining Service
Material: Aluminum
Machining Process: CNC Milling
Machining Equipment: 5-axis CNC Machining Center
Tolerance: ±0.05mm
Surface Treatment: Sandblasting and anodizing
Production Type: Prototype
Specification: Customized
Trade Terms: EXW or as Customers' Requirements
Origin: Dongguan, China
More Details About CNC Machining
| Item |
OEM Service Tight Tolerance Custom Design Precision CNC Machining Parts |
| Size |
Customized, according to drawing |
| Technological Design |
Process analysis and review of product drawings; Draw up a processing plan; Compile process specification and design and manufacture of process equipment |
| Material |
Carbon steel, Stainless steel, Aluminum, Aluminum alloy, Copper alloy, Galvanized steel sheet, Titanium alloy, Special materials, Engineering Plastics Or Customized |
| Processing |
Milling, Turning, Drilling, Planing, Fitter, Boring, Grinding, CNC machining, Broaching, Grinding and Honing |
| Surface |
Polishing, Sandblasting, Zinc plating, Tin plating, Nickel plating, Gold plating, Silver plating, Copper plating, Alloy plating and Spraying (Painting and powder spraying), Anodizing and electrophoresis, etc. |
| Testing Equipment |
CMM, Roundness Meter, Altimeters, Hardness Tester, Marble Platform, etc. |
| Min Order |
1 piece |
| Quotation Against |
2D drawings (PDF, JPG, DWG), 3D drawings (STP, IGS) or sample |
What Is 5-Axis CNC Machining
CNC is one of the widely adopted methods to remove the material from metal using high-speed cutting tools. The accuracy of CNC machines remains matchless, as it enables manufacturers to have what they exactly want. Typically, CNC machines can be segregated into three main types; horizontal milling machines, vertical milling machines, and lathes. All of these types use the combination of CAD and CAM to present the final part into its desired shape.
After knowing the basics of CNC, let’s talk about the 5-Axis CNC machine, which is equipped with more axes than a typical CNC or 3-axis CNC machine. In literal meaning, the 5-Axis CNC machine can move in 5 directions instead of moving in 3 directions. Of course, the rotation and movement of the cutting tool in 5 directions bring more efficiency to the machining process.
More commonly, the 5-Axis is obtained by adding rotation or tilt to the tool spindle or work-holding platform. It is necessary for the manufacturing of parts that offer complex movement. It is also convenient for operators to accomplish five faces in one operation. So, the improved efficiency and precision of the 5-Axis machines are adding value to their services.
For determining the paths of the tool, the CAD model is fed into the CAM software, which then creates codes that instruct the machine about the speed of the cutting tool and movement of the tool. So, the 5-Axis machine can operate in the 5-Axis, including X, Y, Z, A, and B coordinate system. The coordinate system in 5-Axis works in the following manners:
- X-Axis operates left to right.
- Y-Axis operates from front to back.
- Z-Axis operates from top to bottom.
- A-Axis Rotates around X-axis (tilts backward and forward)
- B-Axis Rotates around Y-axis (tilts and spins from left to right)
What can we do for you?
1. Professional, Competitive price and Fast delivery time
We engaged in this area for almost 11yeas, experience engineer can help you process the project well and perfect, also we own our factory that we can control the cost and delivery time very well. We can try best to meet your request.
2. Protect our customer profit well
Even we have very strictly quality control system, but we still can`t promise every part you received will 100% perfect, so if there is any defective parts you received, you just need to offer us the evidence(such as picture),we will check and confirm it. After that, we will repair or redo them.
Because of our strictly quality control system, we have confidence to promise our customer with this. Please kindly noted that it`s our advantage compared with others, we realize that only the high quality and good service can we keep friendly and long-term business relationship with our customer and it`s also the only way for an enterprise to be existed.
Surface Finish for your CNC Machining Parts
FAQ
Q: How Can I get a quotation?
A: Please provide 2D(or 3D) files or samples. Draw format: IGS, STEP, STP, JPEG, PDF, DWG, DXF, CAD etc.
Q: What is your machining scope?
A: CNC or non CNC machining(include turning and milling), grinding, punching, laser printing(logo) /engraving, Wire EDM service.
Q: How quickly can you provide me a quotation?
A: Quotations are turned around usually in 24 hours (during business hours) depending on complexity.
Q: What's the timeframe to produce my parts?
A: Typically around 3-4 weeks lead time for production, but that may vary depending on our workloads and complexity of your product.
Q: How do you ship the finished goods?
A: For small samples we will air freight, but for production it will depend on your finished size and weight of your goods. For small goods we can air freight, for large we typically will send by sea or rail (depending on your location).
