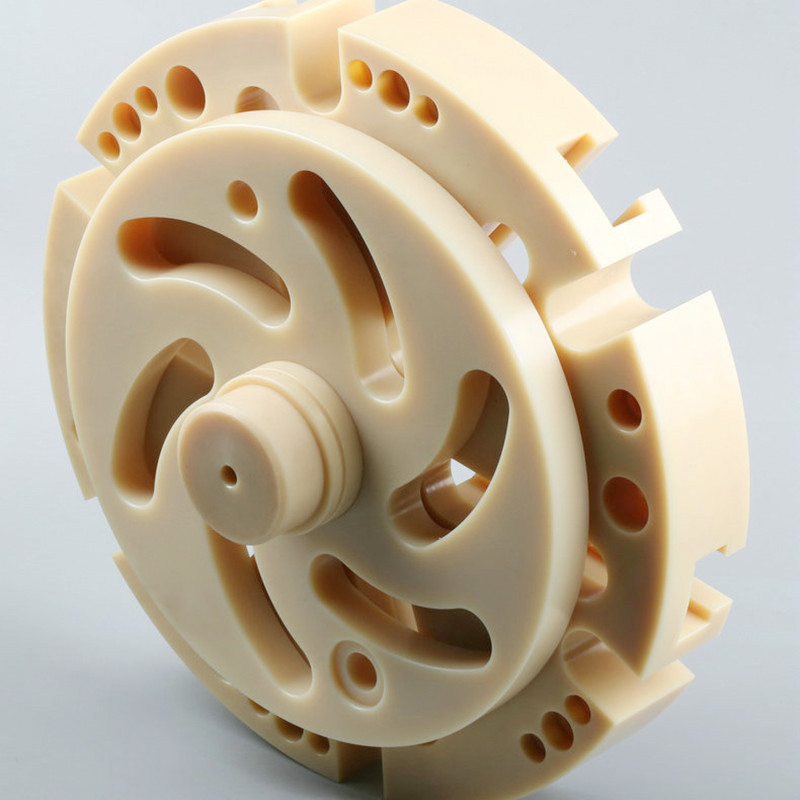

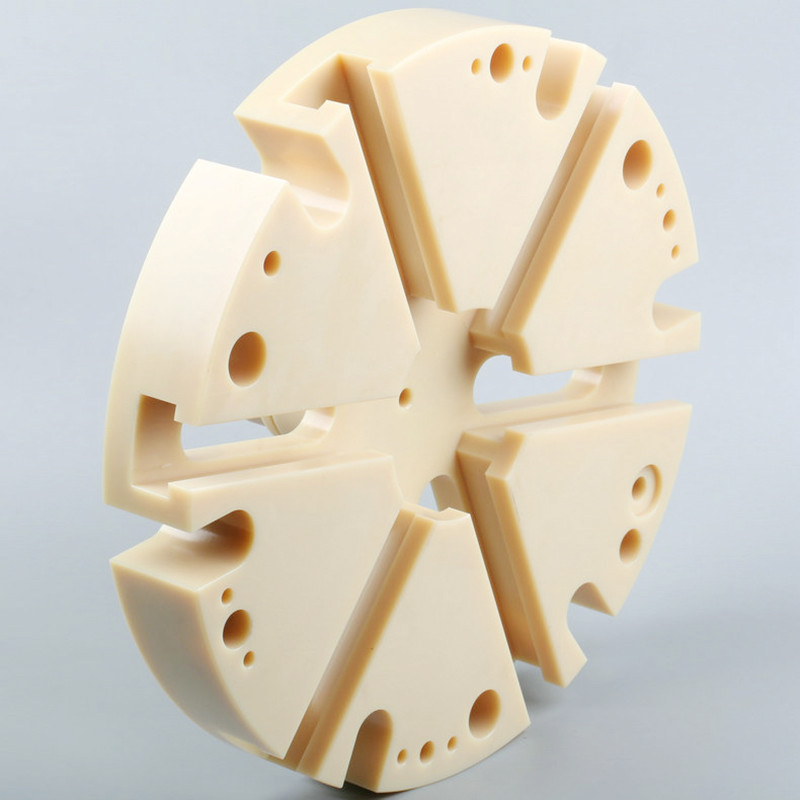

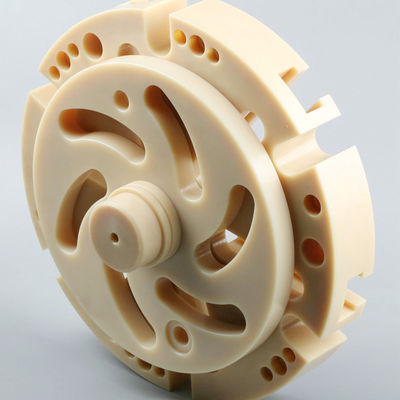

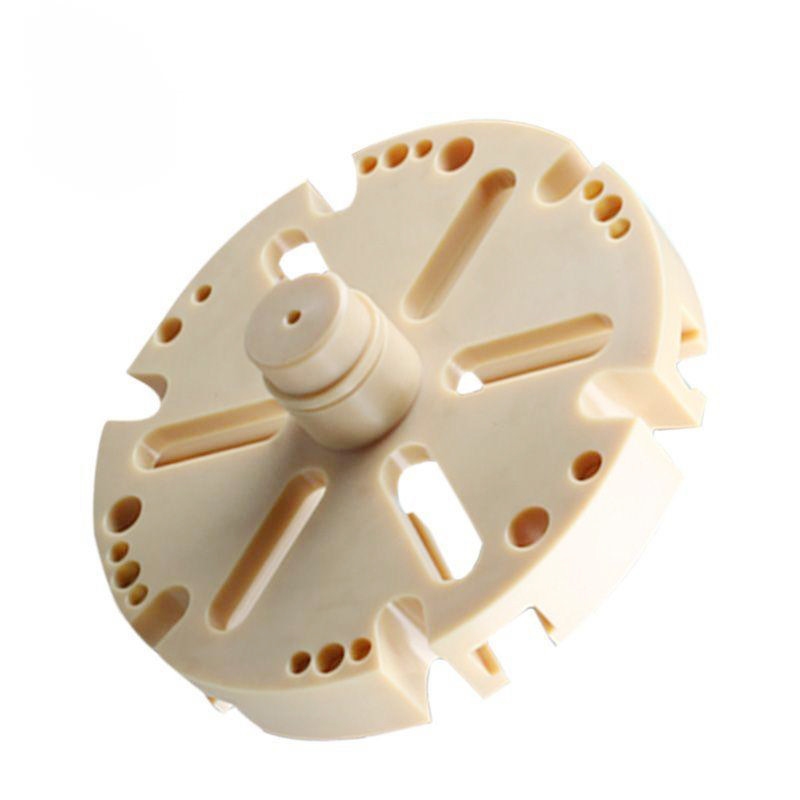

Nylon CNC Turning-Milling Parts
Product Details
Product Name: Nylon CNC Turning-Milling Parts
Machining Type: CNC Turning
Machining Accuracy: High
Lathe Milling Type: CNC lathe +CNC machining
Material: Nylon
Tolerance: ±0.05mm, can be customized according to customer requirements, the most precise tolerance up to ±0.003mm
Proofing Period: 3-7 days
Production Cycle: According to the production quantity and product structure to determine
Surface Treatment: As machined
Origin: Dongguan, China
Surface Treatment for CNC Machining Part
| Aluminum Parts |
Stainless Steel Parts |
Steel Parts |
Brass Parts |
| Clear Anodized |
Polishing |
Zinc Plating |
Nickel Plating |
| Color Anodized |
Passivating |
Oxide black |
Chrome Plating |
| Sandblast Anodized |
Sandblasting |
Nickel Plating |
Electrophoresis black |
| Chemical Film |
Laser engraving |
Chrome Plating |
Oxide black |
| Brushing |
Electrophoresis black |
Carburized |
Powder Coated |
| Polishing |
Oxide black |
Heat Treatment |
|
Info about CNC Milling Machine
1. Control panel: Control panel is the brain of a CNC milling machine. The machinist/controller feeds the G-code (required dimensions) using the keyboard which, in turn, instructs the axis motors to move the cutters and other components.
2. Table: The table is used to hold the workpiece stationary for the entirety of the milling process. The workpiece is fit to the metal/wooden/plastic table using T-slots and metal clamps.
3. Column: The columns run along the axis to give a backbone to the milling part.
4. Cutting tool: A cutting CNC machine tool is attached to the column. It moves across the axis to give the desired shape to the CNC machined parts.
5. Frame: As the name suggests, the frame gives sturdy support to the machine, providing them with maximum rigidity to withstand cutting forces. It is mainly built using cast iron.
6. Axes: The axes in a CNC milling machine allows cutting tool/workpiece to move around obtain the maximum possible precision.
7. Spindle: The spindle consists of a rotating assembly that holds the cutting tool and a motor that runs the entire work piece.
8. Coolant supply tube: The coolant supply tubes are used to cool down the rapidly heating metal workpiece and to lubricate the cutting tool for smooth movement.
Our Capability of CNC Turning
Regarding the production capability of CNC lathe machined parts which are with linear appearance. When CNC machining, the raw material rod (usually made of metal or plastics) will rotate at high RPM. Then, a cutting tool will traverse along X, Y or Z axis motion to manufacture precise dimensions. CNC turning shaft is one of the most common spare parts, which is often used in various market sectors, such as multi-function printer, scanner, driving shaft for torque transmission, etc. Alloy steel with case hardened or carburized for better wearing resistance can meet requirement of high torque transmission purpose.
Application of CNC Machining Parts
FAQ
Q: If I need the parts urgent, can you help?
A: Yes, we are here to help. Production time is flexible. If you need the parts urgent, please tell us the delivery time you need. We will do our best to adjust the production schedule priority.
Q: Where can I get product&price information?
A: Send us an inquiry in this page or e-mail, we will contact you after upon receipt of your mail.
Q: How can you guarantee the quality?
A: Quality is our culture. Quality control department set up control plan before starting the project, and all PPAP report will be provided to the whole process.
Q: What kind of production service do you provide?
A: CNC machining, CNC Turning, CNC Milling, Welding, Laser Cutting, Bending, Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), simple assembly and various metal surface treatment.
Q: Can you advise on suitable materials for us?
A: Yes, we are very knowledgeable and can recommend the best grade materials for your application.
